Horrol Technology Fully Automatic Sole Cleaning Machine Industrial Dust free Air Shower Room Cleaning Machine

Air shower entrance sole cleaning machine, digital controller, fully automatic cleaning machine

Full Automatic Sole Cleaner

—

The shoe sole cleaner, as an entrance shoe sole cleaning device, aims to solve the problem of dirt and dust brought into the room by shoe soles. Through automatic sensing and activation, the soaking track brush rotates and rubs against the shoe sole, thereby cleaning off the dirt and dust on the shoe sole. The dirt and dust are trapped at the entrance, reducing the workload of indoor floor cleaning. The shoe sole cleaner establishes a barrier to maintain the cleanliness of the indoor environment.

Schematic diagram of dynamic working principle of Horrol Technology's fully automatic sole cleaning machine

WeChat

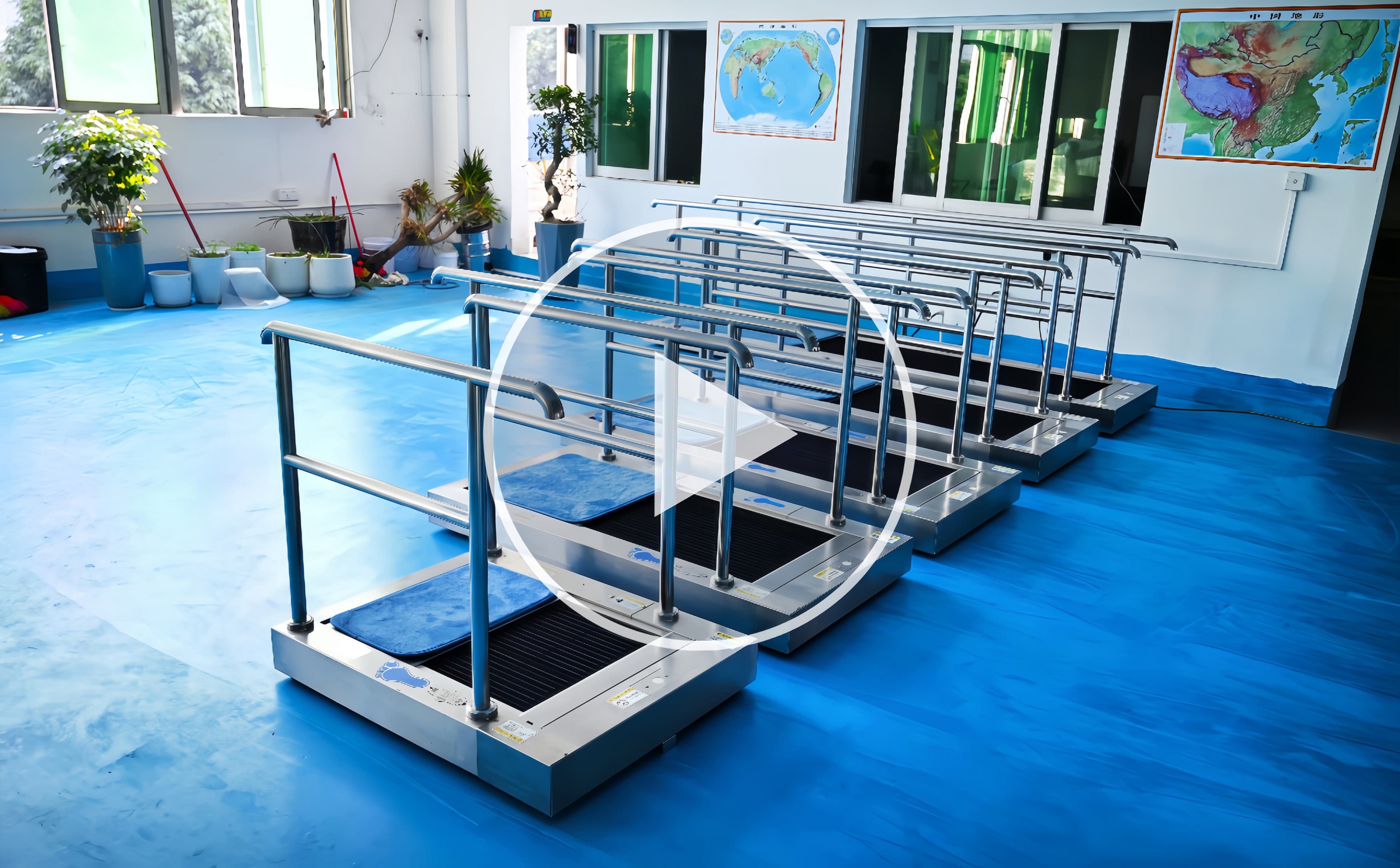

Introduction to the comprehensive model, specifications, and functions of shoe sole cleaning machine

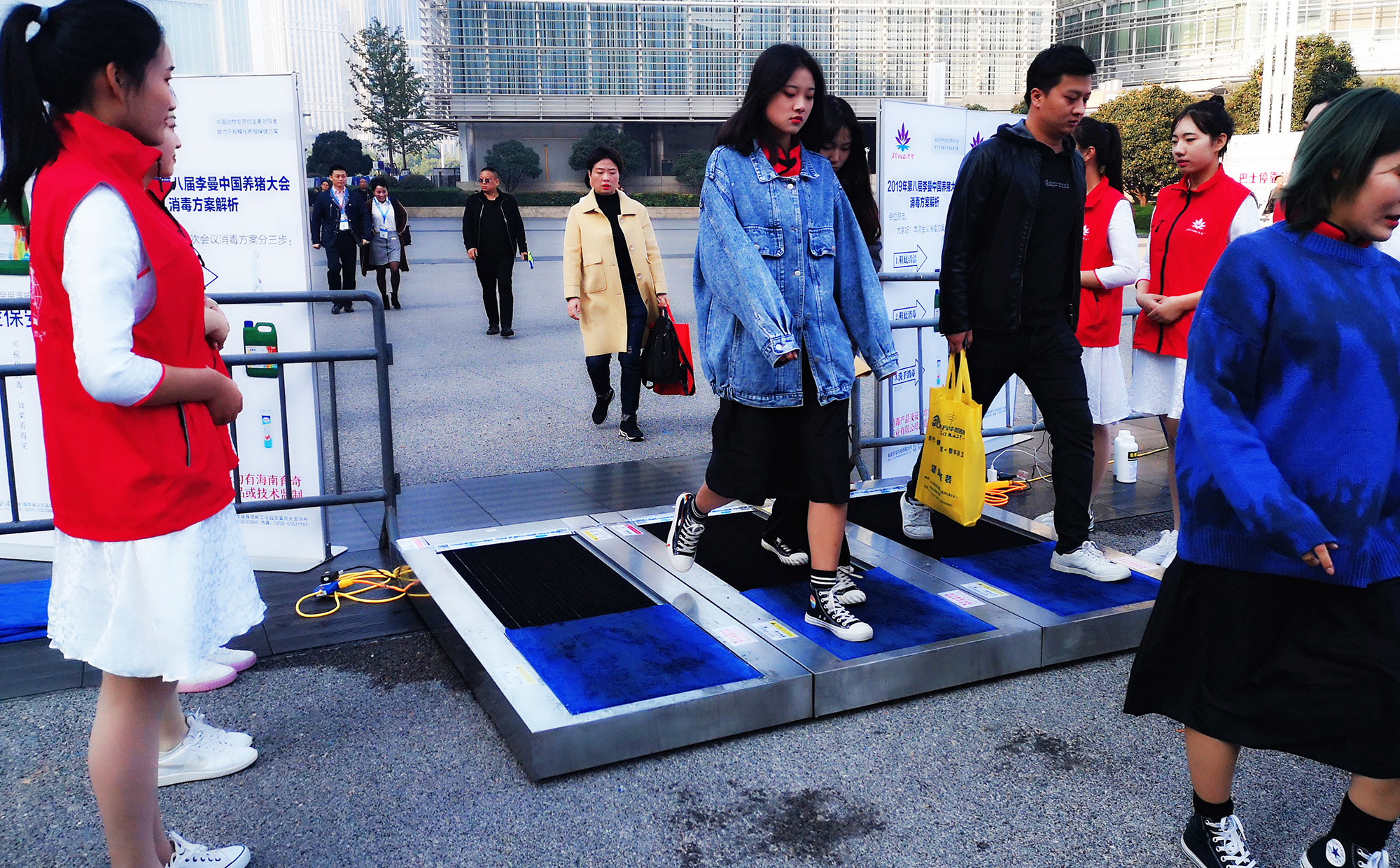

【Case Study】

—

Foot cleaning and indoor cleanliness; Love cleanliness, endless.

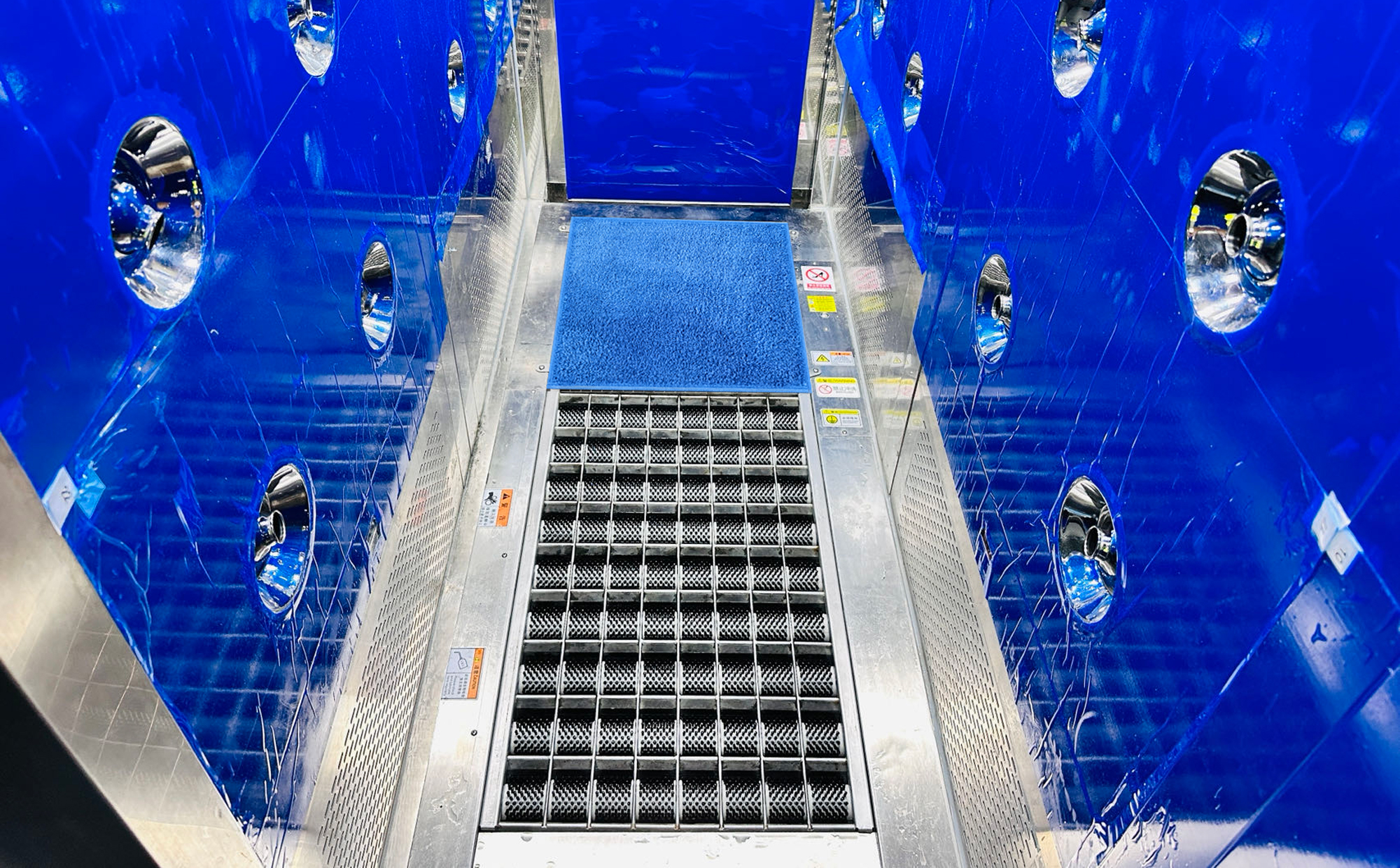

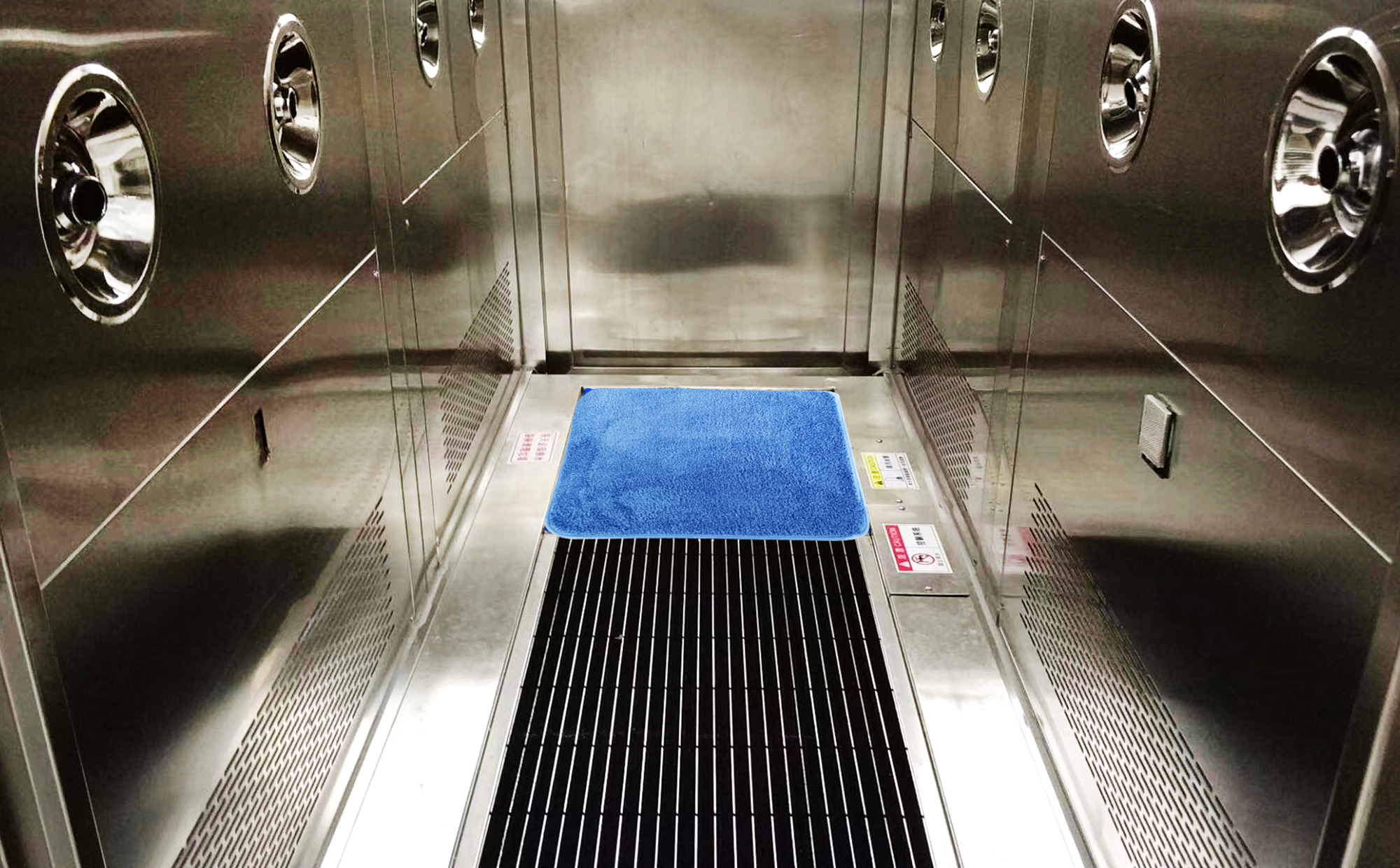

Air shower sole cleaning machine

HORROL

Drum type sole cleaning machine

HORROL

Stairway sole shoe washing machine

HORROL

Inlaid sole cleaning machine

HORROL

Shoe sole washing machine in the food room

HORROL

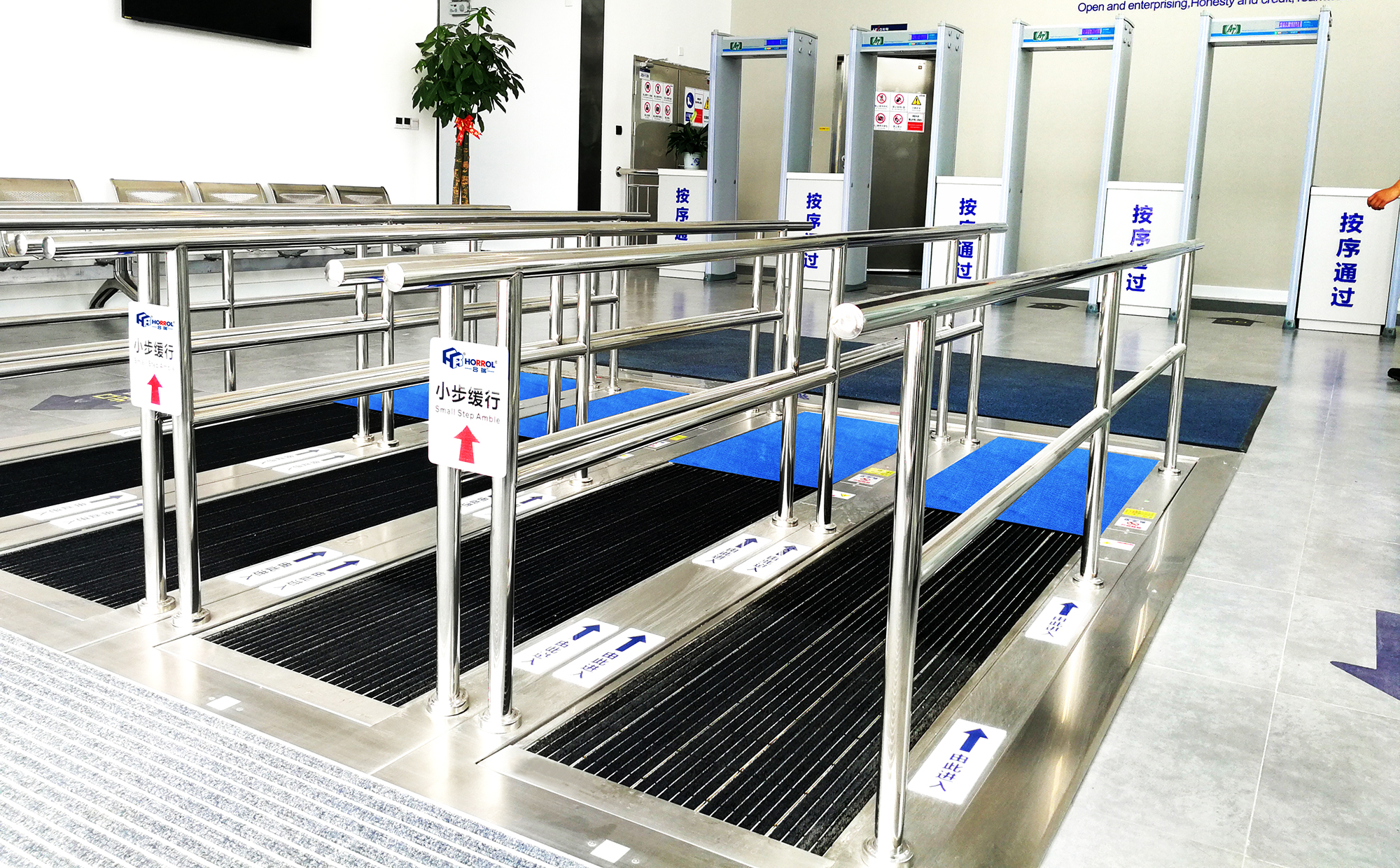

Office entrance sole cleaning machine

HORROL

Venue entrance cleaning machine

HORROL

Laboratory shoe sole polishing machine

HORROL

Model brochure

【Full picture of physical structure】

—

The sole cleaning machine consists of 304 stainless steel sheet metal, equipment operating motor, integrated controller, radar microwave sensor, water level sensor, DC high-pressure water pump, flushing water inlet solenoid valve, synchronous belt brush, stainless steel transmission shaft, bearing gear chain, stainless steel support ribs, synchronous belt support transmission ball, bearing fixed aluminum block, coral fleece super absorbent pad, high and low adjustable horseshoe foot, etc.

Schematic diagram of the explosion of the structure of the industrial staircase entrance fully automatic shoe washing machine for the clean air shower room cleaning machine of Horrol Technology

【Common models】

—

Commonly used specifications are ready to use. If customization is needed, please contact the manufacturer.

The shoe sole cleaning machine, along with turnstiles, air showers, industrial washbasins, and other cleaning facilities, forms a pollution control system at the entrance of the clean workshop, helping industries such as optoelectronics, semiconductors, integrated circuits, new energy, pharmaceuticals, food, beverages, batteries, chemicals, aquaculture, and electronics to easily prevent ground pollution and create cleaner production workshops.

*No armrest style*

Device Name	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)	Sole cleaner (without guardrail)
Device Model	HRSC-850（Dedicated for micro air shower rooms）	HRSC-1000	HRSC-1500	HRSC-1650	HRSC-1800	HRSC-1850（For air shower room use only）	HRSC-2000	HRSC-2800	HRSC-2850（For air shower room use only）	HRSC-3000
Overall dimensions	850x760x145MM	1000x760x145MM	1500x760x145MM	1650x760x145MM	1800x760x145MM	1850x760x145MM	2000x760x145MM	2800x760x145MM	2850x760x145MM	3000x760x145MM
Net size of cleaning area	L300xW550MM	L355xW550MM	L680xW550MM	L680xW550MM	L885xW550MM	L885xW550MM	L885xW550MM	L1690xW550MM	L1690xW550MM	L1690xW550MM
Net size of the drying area	L290xW550MM	L365xW550MM	L550xW550MM	L700xW550MM	L635xW550MM	L685xW550MM	L835xW550MM	L830xW550MM	L880xW550MM	L1030xW550MM
Work Mode	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic
Induction Mode	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave
Water change mode	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic
Control type	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen
Motor power supply	220V，50/60Hz，120W	220V，50/60Hz，120W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W
Pump Power Supply	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W
Pump head	15M	15M	15M	15M	15M	15M	15M	15M	15M	15M
Belt brush style	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through
Belt brush model	HRC-T5D860	HRC-T5D1020	HRC-T5D1680	HRC-T5D1680	HRC-T5D2090	HRC-T5D2090	HRC-T5D2090	HRC-T5D3690	HRC-T5D3690	HRC-T5D3690
Belt brush size	L860xW18MM，T5tooth，172tooth	L1020xW18MM，T5tooth，204tooth	L1680xW18MM，T5tooth，336tooth	L1680xW18MM，T5tooth，336tooth	L2090xW18MM，T5tooth，418tooth	L2090xW18MM，T5tooth，418tooth	L2090xW18MM，T5tooth，418tooth	L3690xW18MM，T5tooth，738tooth	L3690xW18MM，T5tooth，738tooth	L3690xW18MM，T5tooth，738tooth
Number of belt brushes	23piece	23piece	23piece	23piece	23piece	23piece	23piece	23piece	23piece	23piece
Safety protection	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure	45-degree bent protective plate, leakage protection, high and low water level self-checking, power-off to close solenoid valve, anti-overflow structure
Main material	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm	SUS304，National Standard 1.5mm
Sheet Metal Process	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment
Transmission Material	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel	Main and auxiliary transmission shafts and bearings, made of stainless steel
Motor brand	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power
Controller brand	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud
Absorbent pad material	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick
Factory checklist	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe and 1 outlet pipe, 1 filter funnel, 1 set of small shovel and broom, and 1 Nandao leakage protection power cord
Package Dimensions	L900xW810xH350MM	L1050xW810xH350MM	L1550xW810xH350MM	L1700xW810xH350MM	L1850xW810xH350MM	L1900xW810xH350MM	L2050xW810xH350MM	L2850xW810xH350MM	L2900xW810xH350MM	L3050xW810xH350MM
Net weight of equipment	40KG	45KG	64KG	68KG	74KG	75KG	77KG	105KG	106KG	108KG
Total package weight	53KG	65KG	95KG	103KG	108KG	109KG	110KG	155KG	160KG	175KG
Applicable number of people	less than10person	less than20person	less than50person	less than60person	less than80person	less than80person	less than100person	less than130person	less than130person	less than150person

The above conventional parameters are for reference only. For customization, please consult the sales team

*Including guardrail*

Device Name	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)	Shoe sole cleaning machine (with guardrail)
Device Model	HRSC-1000F	HRSC-1500F	HRSC-1650F	HRSC-1800F	HRSC-2000F	HRSC-2800F	HRSC-3000F
Overall dimensions	1000x760x930MM	1500x760x930MM	1650x760x930MM	1800x760x930MM	2000x760x930MM	2800x760x930MM	3000x760x930MM
Net size of cleaning area	L355xW550MM	L680xW550MM	L680xW550MM	L885xW550MM	L885xW550MM	L1690xW550MM	L1690xW550MM
Net size of the drying area	L365xW550MM	L550xW550MM	L700xW550MM	L635xW550MM	L835xW550MM	L830xW550MM	L1030xW550MM
Work Mode	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic
Induction Mode	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave	Infrared sensing, radar microwave
Water change mode	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic	Manual, semi-automatic, fully automatic
Control type	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen	Button control, digital display screen
Motor power supply	220V，50/60Hz，120W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W	220V，50/60Hz，200W
Pump Power Supply	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W	DC24V，90W
Pump head	15M	15M	15M	15M	15M	15M	15M
Belt brush style	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through	Eight Kevlar thread arrays run through
Belt brush model	HRC-T5D1020	HRC-T5D1680	HRC-T5D1680	HRC-T5D2090	HRC-T5D2090	HRC-T5D3690	HRC-T5D3690
Belt brush size	L1020xW18MM，T5tooth，204tooth	L1680xW18MM，T5tooth，336tooth	L1680xW18MM，T5tooth，336tooth	L2090xW18MM，T5tooth，418tooth	L2090xW18MM，T5tooth，418tooth	L3690xW18MM，T5tooth，738tooth	L3690xW18MM，T5tooth，738tooth
Number of belt brushes	23piece	23piece	23piece	23piece	23piece	23piece	23piece
Safety protection	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest	45-degree bent protective plate, leakage protection, high and low water level self-inspection, power-off to close solenoid valve, anti-overflow structure, safety anti-collision and anti-scratch headrest
Main material	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM	SUS304，National Standard1.5MM
Sheet Metal Process	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment	Full-length welding with sub-arc welding, followed by heat bath process treatment
Transmission Material	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel	Main and auxiliary drive shafts and bearings, made of stainless steel
Motor brand	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power	Elephant Power
Controller brand	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud	Horrol Cloud
Absorbent pad material	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick	Composite coral velvet, 20MM thick
Factory checklist	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord	1 set of complete equipment, 2 water-absorbing pads, 1 inlet pipe, 1 outlet pipe, 1 filter funnel, and 1 leakage protection power cord
Package Dimensions	L1050xW960xH410MM	L1550xW960xH410MM	L1700xW960xH410MM	L1850xW960xH410MM	L2050xW960xH410MM	L2850xW960xH410MM	L3050xW960xH410MM
Net weight of equipment	51KG	71KG	74KG	82KG	85KG	118KG	121KG
Total package weight	85KG	110KG	115KG	117KG	119KG	165KG	195KG
Applicable number of people	Less than20person	Less than50person	Less than60person	Less than80person	Less than100person	Less than130person	Less than150person

The above standard parameters are for reference only. For customization, please consult with the sales team
